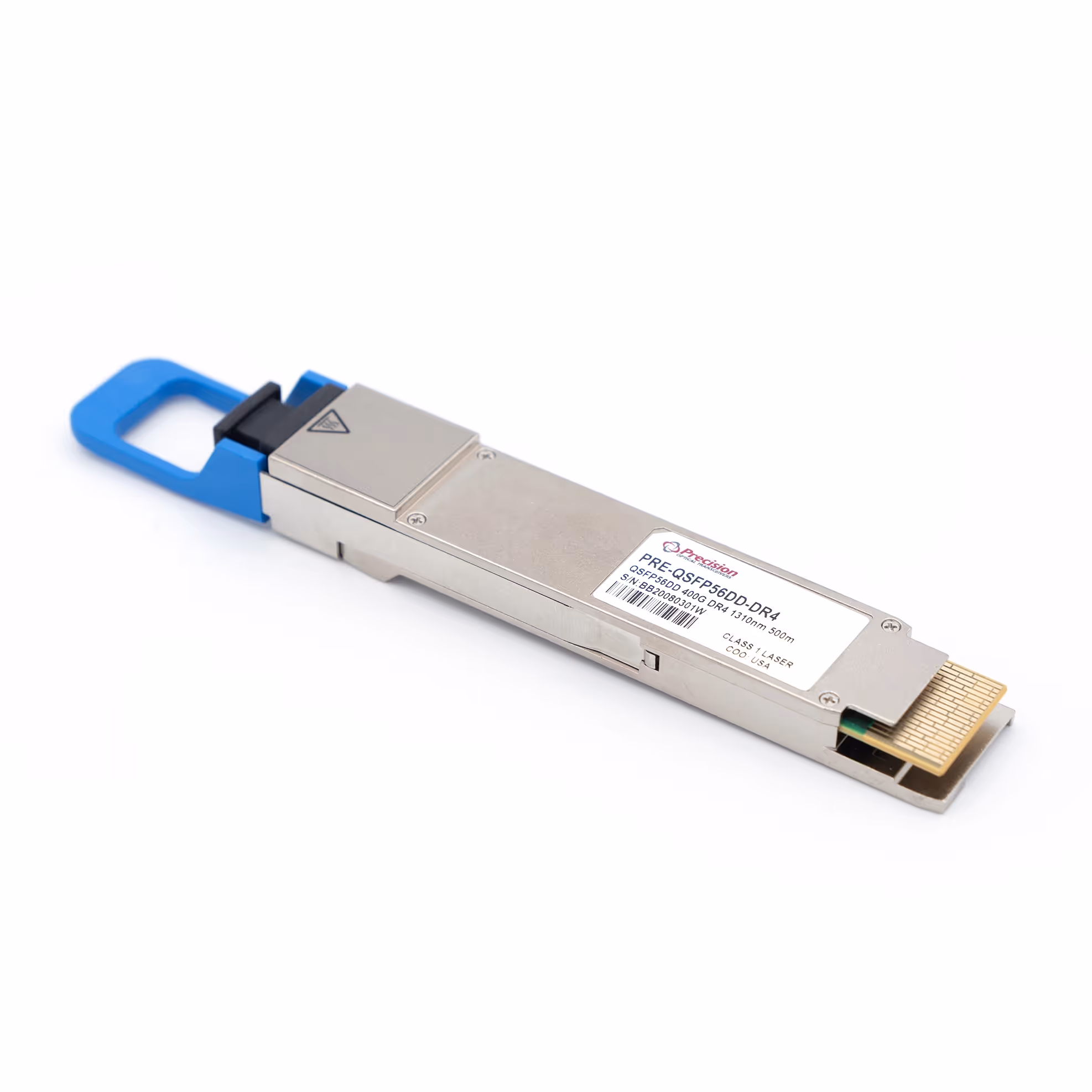

| Especificações | |
|---|---|
| Data Rate Filter | 400Gbps |
| Data Rate | 425Gbps |
| Connector Type | MPO-12 |
| Media Type | SMF |
| Transmitter | EML |
| Receiver | PIN |
| Voltage | 3.3 |
| Distance | 500m |
| RX Overload (dBm) | 5 |
| RX Sensitivity (dBm) | -5,9 |
| Temp. | 0 to 70ºC ~ -40 to 85°C |
| TX Max. (dBm) | 4 |
| TX Min. (dBm) | -2,9 |
| Wavelength (nm) | 1310nm |
| Link Budget (dB) | 3 |
| Modulation | PAM4 |
| Eletrical Lanes | 8 |
| Optical Lanes | 4 |
| Digital Diagnostics (DDM) | Yes |
| Power Consumption | 12 |
